AB01/P1026 90 Degree Unistrut Angle

P1026 90 Degree Unistrut Angle


P1026 90 Degree Unistrut Angle

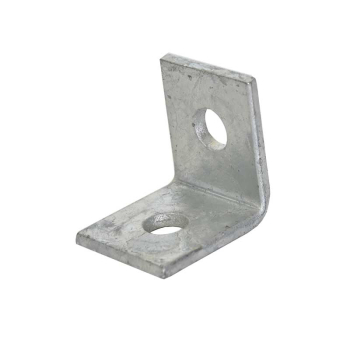

P1026 90 Degree Unistrut Angle with 2 holes.

Used to fix Unistrut or equivalent channel systems at a 90-degree angle with set bolts and long spring zebs (long spring channel nuts). Other methods of use, can be to hang a threaded bar by fixing to an existing strut or Purlin with tek screws (Self Drilling Screws), set bolts, penny washers, and flange nuts.


An angle bracket is an L-shaped fastener used to join two parts generally at a 90-degree angle.  It is typically made of metal.  The metallic angle brackets feature hole in them for screws.

  • Dimensions: 47mm x 50mm
  • Thickness: 5mm thick
  • Hole size: 14mm diameter
  • Weight: 0.135Kgs
  • Finish: Hot Dipped Galvanised to BS EN ISO 1461:2009

90 Degree Angles from Network Cable & Pipe Supports are designed and manufactured to the highest quality standards (ISO 9001:2015).

Product Code: AB01/P1026

Next Day Delivery – UK Mainland.

Galvanised coatings prevent oxidation of the protected metal to create a longer-lasting finish. It does this by forming a barrier and by acting as a sacrificial anode if this barrier is damaged. Galvanising is a plating that (in contrast to iron oxide) does not trigger a breakdown of the substrates’ surface integrity as it is formed. The galvanising, if left intact, can act as a barrier to further oxidation.

2 Hole 90Deg Channel Bracket HDG 50x47mm - P1026 FB111

Additional Information

Weight 0.15 kg
