What Is a P2663 Single Cantilever Arm?

A cantilever arm projects out from a wall or other suitable surface.

Its backplate provides the fixing point. The channel then creates a support for the required service.

As a result, no support is needed below the arm. This helps keep the area underneath clear.

41mm x 41mm Channel

We make the arm from 41mm x 41mm steel channel.

The channel has a plain, unslotted design. Therefore, it provides a strong base for many support systems.

In addition, its common profile works with many suitable channel fittings.

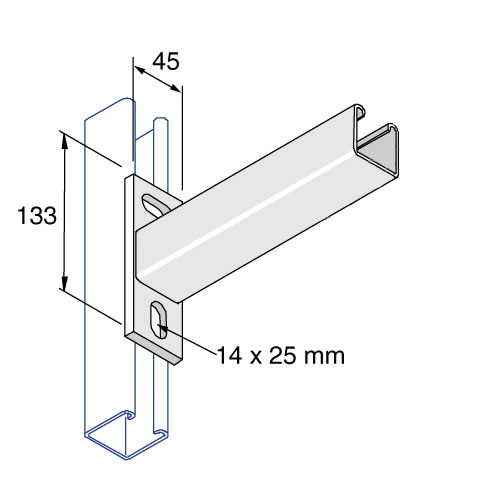

Strong Backplate

A steel backplate allows the arm to fix to a suitable surface.

Two 14mm diameter holes provide the fixing points. There is also a drainage hole in the plate.

For safety, always use fixings that suit the surface and load.

Pipework Support

This arm works well for many pipe support systems.

For example, suitable pipe clips can attach to the channel. The arm can then hold the pipe away from the wall.

Different lengths allow for different pipe positions. Therefore, you can select a size to suit the job.

Cable Tray Support

Cable trays can also use this type of support.

Once installed, the arm creates a firm mounting point. As a result, it can help support cable routes along walls.

Furthermore, several arms can be used as part of a larger support system.

Where Can It Be Used?

The P2663 suits many building service projects.

Common uses include:

• Pipework
• Cable trays
• Electrical services
• Mechanical services
• HVAC systems
• Cable management
• Building services
• Industrial installations
• Commercial installations
• Channel support systems

Therefore, one simple product can provide support for many different services.

Standard Sizes

Several standard arm lengths are available.

First, check the size table above. Next, select the projection required for your installation.

However, some projects need a different size. In this case, please ask us about a made-to-order arm.

Bespoke Lengths

We can also manufacture arms to suit individual requirements.

Simply tell us the length and quantity required. Our team can then check the details.

As a result, you are not limited to standard sizes.

Galvanised Finish

The arm has a Hot-Dip Galvanised finish.

This process adds a protective zinc coating to the steel. Therefore, it helps protect the surface from corrosion.

The galvanised finish complies with BS EN ISO 1461:2009.

Main Features

The P2663 Single Cantilever Arm provides a practical support for many installations.

Main features include:

• 41mm x 41mm channel
• Heavy-gauge steel
• Plain channel profile
• Two 14mm fixing holes
• Welded backplate
• Drainage hole
• Standard lengths available
• Bespoke lengths available
• Hot-Dip Galvanised finish

In addition, the simple design makes the arm easy to use with many support systems.

Choosing the Right Size

Start by measuring the projection needed from the wall.

Then check the available sizes in the table above. Also consider the weight and type of service being supported.

If a standard size does not suit, please contact us. We can look at manufacturing another length.

Quality

Network Cable & Pipe Supports Ltd manufactures a wide range of steel support products.

Our company operates an ISO 9001:2015 quality management system. Therefore, controlled processes form part of our manufacturing operations.

We supply both standard and bespoke products.

Delivery

Standard products may be available from stock.

Where stock is available, Next Day Delivery may be possible to UK Mainland destinations. However, made-to-order products will need extra time.

Please contact us for current stock and lead times.

Order a P2663 Single Cantilever Arm

Select the size you need from the table above.

Alternatively, ask us about a bespoke length. Our team can help with sizes, prices and availability.

Contact Network Cable & Pipe Supports for more information.
