P1219 Internal Connector
P1219 Internal Connector – Unistrut Channel Joiner
Strong and Simple Channel Connections
The P1219 Internal Connector joins Unistrut and compatible metal framing channels.
It provides a strong connection between channel sections. In addition, we supply M6 x 12mm screws with each connector.
Therefore, installation is quick and simple.
The P1219 is suitable for:
- Industrial frameworks
- Construction projects
- Electrical installations
- Cable support systems
- Metal framing systems
- Support structures
As a result, the P1219 is a useful part for many channel systems.
Quick and Easy Installation
The P1219 Internal Connector is simple to fit.
First, place the connector inside the channel. Then, secure it with the supplied M6 x 12mm screws.
As a result, you can join channel sections quickly. In addition, you do not need specialist tools for normal installation.
Durable Galvanised Finish
We hot-dip galvanise the P1219 to BS EN ISO 1461:2009.
The galvanised coating helps protect the steel from corrosion. Therefore, it provides a durable finish for many settings.
In addition, the coating helps protect the connector over the long term. As a result, it needs little maintenance during normal use.
P1219 Internal Connector Specifications
| Feature | Specification |
|---|---|
| Dimensions | 41mm high x 21mm wide x 250mm long |
| Hole Size | 6mm tapped holes |
| Weight | 0.250kg |
| Finish | Hot-dip galvanised to BS EN ISO 1461:2009 |
| Fixings | M6 x 12mm screws |
| Product Code | P1219 |
Where Can You Use the P1219?
You can use the P1219 with Unistrut and compatible channel systems.
For example, it can join channel sections in electrical and cable support systems.
In addition, you can use it in general support frames. Therefore, the P1219 is suitable for many commercial and industrial projects.

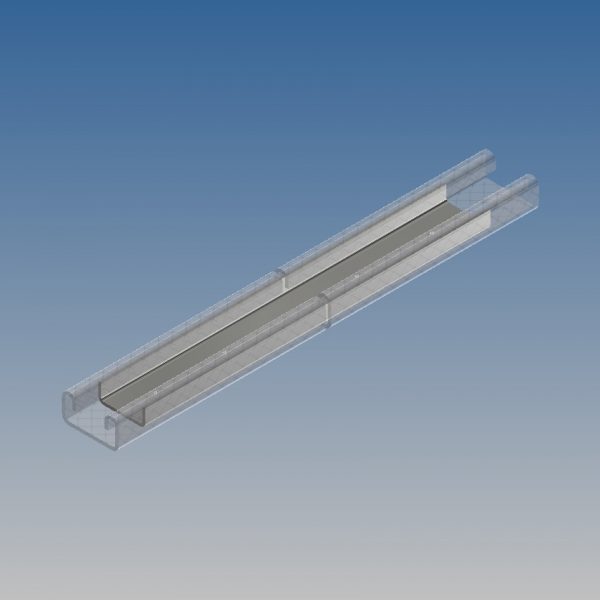

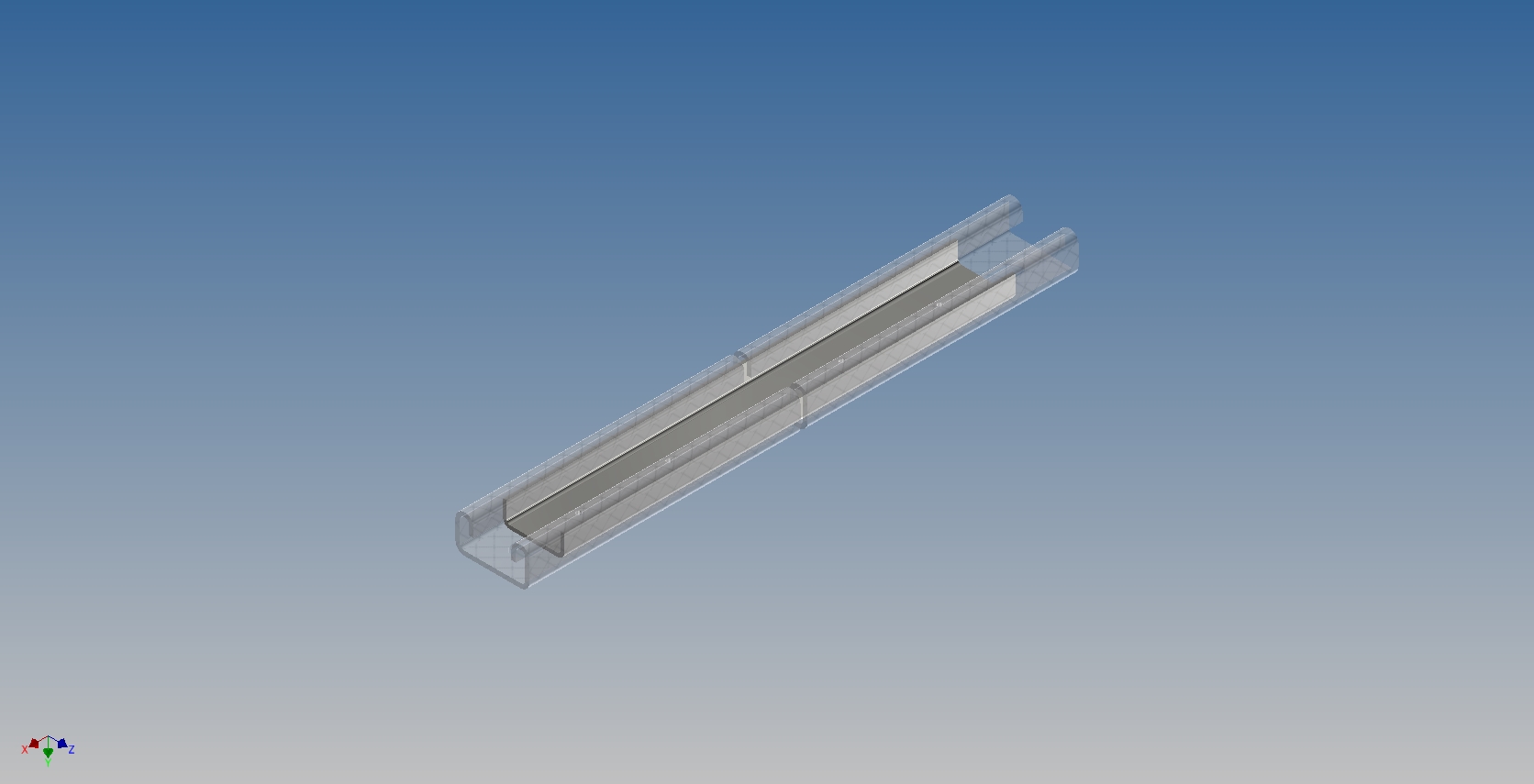

The connector fits inside the channel. As a result, it creates a neat joint between the two sections.
UK Manufactured Internal Connectors
Network Cable & Pipe Supports Ltd manufactures and supplies P1219 Internal Connectors in the UK.
We operate under our ISO 9001:2015 quality management system. Therefore, we maintain quality controls throughout production.
In addition, our UK manufacturing facility allows us to help with larger orders and product advice.
You can find out more about our quality standards.
Order P1219 Internal Connectors
Choose the P1219 Internal Connector when you need a simple way to join compatible channel sections.
It is strong, easy to fit and has a durable galvanised finish. Therefore, it is a practical choice for many support systems.
Contact us today for prices, stock availability, larger quantities or technical information.
